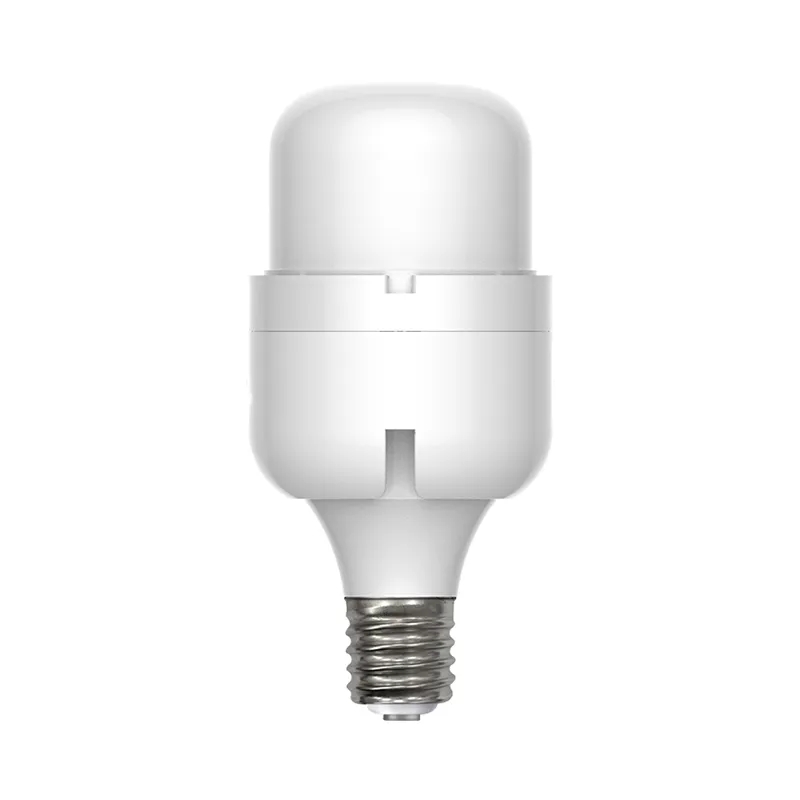

High-Power Pillar-Shaped LED Bulb, Integrated Cooling Fan
SKU: LBL004
Select Specifications
Voltage
Power
Color Temperature
Base Type
Specifications
| Input Voltage | AC 110V / 180–265V |
| Power Consumption | 35W / 45W / 60W / 80W |
| Base | E27 / B22 |
| Dimensions | Ø110*230 |
| Luminous Flux | 105-110LM/W |
| Color Temperature (CCT) | 3000K / 4500K / 6000K |
| Color Rendering Index (CRI) | ≥80 |
| Beam Angle | 160° |
| Power Factor (PF) | ≥0.8 |
| Dimming Option | Dimmable / Non-dimmable (optional) |
| Operating Temperature | -20°C to +40°C |
| Housing Material | Flame-retardant PC body |
| Heat Dissipation Structure | Integrated Cooling Fan |
| Diffuser Material | High-transmittance PC diffuser |
| Rated Lifetime | ≥20,000 hours (L70) |
| Warranty | 3-year limited warranty |
Product Description
This high-power pillar-shaped LED bulb is specifically engineered for industrial lighting, warehouse logistics, commercial spaces, and high-bay applications. Featuring high-efficiency LED chips and active cooling technology, it delivers exceptional brightness within a compact form factor, serving as the ideal replacement for traditional high-power energy-saving lamps and metal halide lamps. It provides businesses with an energy-efficient, long-lasting, and low-maintenance lighting solution.
Core Advantages
🔥 Active Cooling Technology
Integrated silent cooling fan overcomes the limitations of traditional passive heat dissipation, ensuring stable chip temperature control even under high-power operation. With minimal light degradation during prolonged continuous use and extended lifespan, it's suitable for harsh environments including high-temperature areas and enclosed fixtures.
💡 High-Efficiency Design
Utilizing imported high-efficiency LED chips, the entire luminaire achieves an impressive efficacy of 105-110LM/W, delivering 50%+ energy savings compared to conventional light sources at equivalent brightness levels. Multiple power options (35W-80W) allow flexible matching to various ceiling heights and illumination requirements.
🛡️ Industrial-Grade Protection
Flame-Retardant PC Housing: V0-grade flame-retardant material, heat-resistant and impact-resistant
High-Transmittance Diffuser: Uniform and soft light distribution, no glare, no dark areas
Wide Voltage Design: AC 110V-265V universal voltage, adaptable to grid fluctuations
Optional Dimming Function: Meets smart lighting scenario requirements
Application Scenarios
Industrial Facilities: Production lines, assembly workshops, warehouses
Commercial Spaces: Supermarkets, retail stores, exhibition halls
Public Facilities: Underground parking garages, corridors, passageways
Outdoor Canopies: Gas stations, logistics platforms (with weatherproof fixtures)
Quality Assurance
3-Year Extended Warranty: Exceeding industry standards, worry-free after-sales service
20,000-Hour Lifespan: L70 standard verified, near-zero annual maintenance costs
Strict Quality Control: 100% aging test, each bulb undergoes 8+ hours of power-on inspection before shipment
